An all-in-one worthy of showcasing! State-of-the-art security. Powerful performance. A clutter-free desk. The ThinkCentre M90a all-in-one PC delivers all of this—and more. Powered by 10th Gen Intel® Core™ processors, it also includes robust storage and discrete graphics options. An adjustable 23.8" FHD display, along with a Dolby Atmos® and noise-cancelling mic—ideal for VOIP calls—make this the perfect PC for the front office.
- Smart USB ports to prevent unauthorized people from uploading files
- A chassis intrusion switch detects any attempts to remove the system cover
- Trusted Platform Monitor encrypts your data and your passwords
- Biometrics let you use your face to log in with the optional hybrid IR camera
- The optional PrivacyGuard display panel on the M90a features an electronic filter to keep your screen private

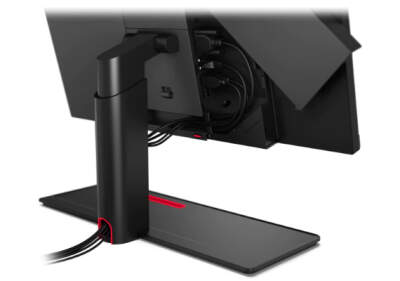

- Built-in cable management
- Modern Standby, a feature that enables your system to stay up-to-date even in sleep mode
- Optional Intel vPro platform that's built for business
- Tested against 10 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions
- Next-gen Intelligent Cooling Engine (ICE) 4.0, the M90a delivers unparalleled efficiency using three different modes:
- Best Performance (BP) Mode provides a 15% power increase to your system
- BE Mode provides a quieter experience, running 3 decibels lower than BP Mode
- Full Speed Mode provides maximum cooling to prevent your system from running hot
To open the brochure, click here.
To open the datasheeet, click here.
Contact usProcessor:
Up to 10th Intel® Core™ i9 vPro
Operating System:
Up to Windows 10 Pro

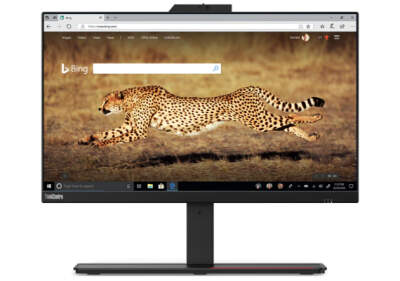

Display:
- Dual-monitor support 23.8" FHD IPS (1920 x 1080, 250 nits) 23.8"
- FHD IPS (1920 x 1080, 250 nits) Touchscreen 23.8" <> - FHD IPS (1920 x 1080, 350 nits) 23.8"
- FHD IPS Privacy Guard (1920 x 1080, 350 nits)
Memory:
Up to 32GB DDR4-2666
Storage:
- Up to 1TB SSD
- Up to 2TB 2.5" HDD
Graphics:
- Intel® UHD integrated graphics
- Optional: AMD Radeon™ 625
Security:
- Fast Identity Online (FIDO) authentication capabilities
- Trusted Platform Module (TPM) 2.0
- Chassis intrusion switch
- Smart USB
- ThinkShutter privacy shutter
- Kensington lock slot
Audio:
3W x 2
- Dolby Atmos®
Camera:
HD camera with ThinkShutter
- Optional: Hybrid infrared (IR) / HD with ThinkShutter
Connectivity:
Optional WiFi: 802.11 1x1 ac/a/b/g/n
- Optional: Bluetooth® 5.0
- LAN: 1GB
Optical Disc Drive (ODD):
Optional: Slim type
Ports / Slots:
2 x USB 3.2 Gen 2 (Type A)
- USB 3.2 Gen 1 (Type C, always on)
- 4 x USB 3.2 Gen 1 (Type A)
- DisplayPort
- Optional: 3-in-1 card reader
- Microphone
- Headphone / mic combo
- Optional: Serial port
- RJ45
M.2 Slot
Optional choice of 1:
- WiFi
- PCIe SSD
- Intel® Optane™
Internal Bay:
Optional choice of 1:
- 2.5" HDD (in addition to standard HDD)
- 1 x Slim ODD
Green Certifications:
Energy Star® 8.0
EPEAT® Silver
RoHS
TCO 8.0
65% post-consumer content (PCC)
AC Adaptor:
150W for integrated graphics
170W for discrete graphics support
