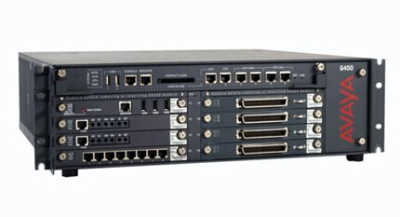

AVAYA G450 Branch Gateway

The G450 Media Gateway consists of a 3U high, 19" rack mountable chassis with field-removable Supervisor Main Board Module, Power Supplies, Fan Tray, DSP resources and memory. It has eight Media Module slots that host a combination of interface boards to support T1/E1, ISDN-BRI, WAN interfaces, digital or analog telephones and analog trunks.

Contact us

Field-replaceable Main Board Module

supports optional DSP and Memory add-ons.

Modular DSP Resources

available as daughterboards for Main Board Module.

Robust TDM Capabilities for scalability and deployment flexibility

including 320 voice channel capacity, 192 analog or digital (DCP) ports, up to 8 T1/E1s* up to 10,000 Busy Hour Call Completions.

High-resiliency features

such as dual, redundant, load-sharing power supplies; modular fan tray, standard Local Survivability and Enhanced Local Survivability (with S8300 Server).

Basic routing capabilities

including OSPF, RIP, PPP, Frame Relay and VRRP support.
