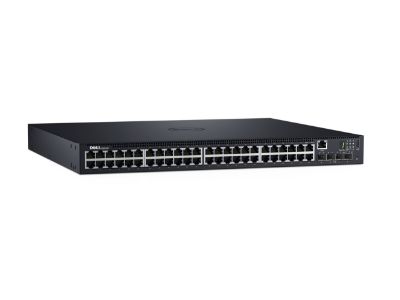

DELL EMC POWERSWITCH N1500 SERIES SWITCHES

The N1500 switch series offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 10GbE uplinks. With high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to easily handle unexpected traffic loads, the switches offer simple management and scalability via an 40Gbps (full-duplex) high availability stacking architecture that allows management of up to four switches from a single IP address.  N1500 series switches help create performance assurance with a data rate up to 176Gbps (full duplex) and a forwarding rate up to 164Mpps.

• Up to 48 line-rate GbE RJ-45 ports and four integrated 10GbE SFP+ ports.

• Up to 48 ports of PoE+ with an optional external power supply.

• Up to 200 1GbE ports in a 4-unit stack for high-density, high-availability in IDFs, MDFs and wiring closets.

• Non-stop forwarding and fast failover in stack configurations.

• Energy-Efficient Ethernet and lower power PHYs reduce power to inactive ports and idle links, providing energy savings from the power cord to the port.

• Fresh Air compliance for operation in environments up to 113°F (45°C) helps reduce cooling costs in temperature constrained deployments.

• USB (Type A) port for configuration via USB flash drive

Open the Datasheet

Contact us

Ports

Up to 48x RJ45 10/100/1000Mb PoE+ (up to 30.8w) auto- sensing ports, 4x SFP+ ports, 1 integrated 600W PSU (requires C15 plug)

Dedicated Ports

4 integrated front 10GbE SFP+ dedicated ports, 2 10GbE can be used as stacking ports

Integrated Power Supply

40W AC (N1524), 100W AC (N1548), 600W AC (N1524P, N1548P)

Static Routes

256 (IPv4)/128 (IPv6)

Dynamic Routes

256 (IPv4)

Switch Fabric Capacity

128Gbps (N1524 and N1524P) (full duplex); 176Gbps (N1548 and N1548P)

Forwarding Rate

128Mpps (86 Gbps) N1524 and N1524P / 164Mpps (110 Gbps) N1548 and N1548PLink

Aggregation

64 LAG groups, 144 dynamic ports per stack, 8 member ports per LAG
