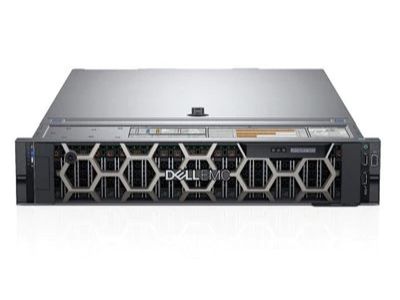

Benefit from scalable storage performance and data set processing with the PowerEdge R740xd server. This 2U, 2-socket platform brings you scalability and performance to adapt to a variety of applications. Choose up to 24 NVMe drives, or a total of 32 x 2.5” or 18 x 3.5” drives. As you scale your deployments, scale your productivity with embedded intelligence and automation from iDRAC9 and the entire OpenManage portfolio designed to simplify the IT lifecycle from deployment to retirement.
Contact usProcessor
Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 28 cores per processor
Memory Module Slots
24 DDR4 DIMM slots (12 NVDIMM or 12 DCPMM only) Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 1.53TB / LRDIMM 3TB / NVDIMM 192GB / DCPMM 6.14TB (7.68TB with LRDIMM)
Front Bays
Up to 24 x 2.5” SAS/SSD/NVMe, max 184TB / Up to 12 x 3.5” SAS, max 192TB
Mid Bay
Up to 4 x 3.5” SAS, max 64TB / Up to 4 x 2.5” SAS/SSD, max 30.72TB
Rear Bays
Up to 4 x 2.5” SAS/SSD, max 30.72TB / Up to 2 x 3.5” SAS, max 32TB
PCIe Slots
8 x Gen3 slots (4 x 16)
Form Factor
2U Rack Server
