PowerScale OneFS is the operating system powering the industry’s leading scale-out NAS platforms that enables you to innovate with your data. The PowerScale family includes the PowerScale platforms and the Isilon platforms configured with the PowerScale OneFS operating system. OneFS provides the intelligence behind the highly scalable, high–performance modular storage solution that can grow with your business. A OneFS powered cluster is composed of a flexible choice of storage platforms including all-flash, hybrid and archive nodes. These solutions provide the performance, choice, efficiency, flexibility, scalability, security and protection for you to store massive amounts of unstructured data within a cluster. The PowerScale all-flash platforms co-exist seamlessly in the same cluster with your existing Isilon nodes to drive your traditional and modern applications. PowerScale F600 and F900 with OneFS 9.4 now includes support for QLC drives that deliver massive capacity without any loss in performance.
To open the datasheet, click here.

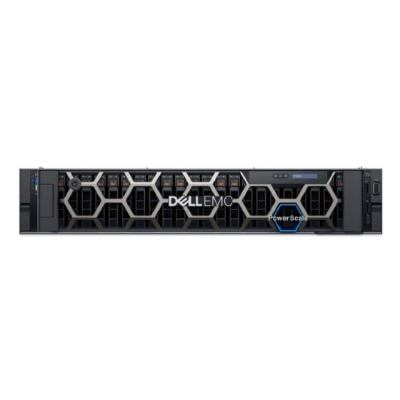

PowerScale F900
Provides the maximum performance of all-NVMe drives in a cost-effective configuration to address the storage needs of demanding workloads. Each node is 2U in height and hosts 24 NVMe SSDs. F900 support TLC and QLC drives for maximum performance. It allows you to scale raw storage capacity from 46 TB to 720 TB per node and up to 186 PB of raw capacity per cluster. The F900 includes in-line compression and deduplication. The minimum number of PowerScale nodes per cluster is three while the maximum cluster size is 252 nodes. The F900 is best suited for Media and Entertainment 8K, genomics, algorithmic trading, artificial intelligence, machine learning and HPC workloads.
PowerScale F600
With NVMe drives, the F600 provides larger capacity with massive performance in a cost-effective compact form factor to power demanding workloads. F600 support TLC and QLC drives for maximum performance Each node allows you to scale raw storage capacity from 15.36 TB to 240 TB and up to 60 PB of raw storage per cluster. Inline software data compression and deduplication is included. The minimum number of nodes per cluster is three while the maximum cluster size is 252 nodes. The F600 comes in two different CPU configurations. The F600 is best suited for M&E studios, hospitals and financials that need performance and capacity for demanding workloads.
PowerScale F200
Provides the performance of flash storage in a cost-effective form factor to address the needs of a wide variety of workloads. Each node allows you to scale raw storage capacity from 3.84 TB to 30.72 TB and up to 7.7 PB of raw capacity per cluster. The F200 includes in-line compression and deduplication. The minimum number of PowerScale nodes per cluster is three while the maximum cluster size is 252 nodes. The F200 is best suited for remote offices, small M&E workloads, small hospitals, retail outlets, IoT, factory floor and other similar deployment scenarios.
Isilon F800
Provides massive performance and capacity. It delivers up to 250,000 IOPS and up to 15 GB/s aggregate throughput in a single chassis configuration and up to 15.75M IOPS and up to 945 GB/s of aggregate throughput in a 252 node cluster. Each chassis houses 60 SSDs with a capacity choice of 1.6 TB, 3.2 TB, 3.84 TB, 7.68 TB or 15.36 TB per drive. This allows you to scale raw storage capacity from 96 TB to 924 TB in a single 4U chassis and up to 58 PB raw storage in a single cluster.
Isilon F810
Provides massive performance and capacity along with inline data compression and deduplication capabilities to deliver extreme efficiency. The F810 delivers up to 250,000 IOPS and up to 15 GB/sec aggregate throughput in a single chassis configuration and up to 15.75M IOPS and up to 945 GB/s of aggregate throughput in a 252 node cluster. Each F810 chassis houses 60 SSDs with a capacity choice of 3.84 TB, 7.68 TB or 15.36 TB per drive. This allows you to scale raw storage capacity from 230 TB to 924 TB in a 4U chassis and up to 58 PB of raw storage in a single cluster.
