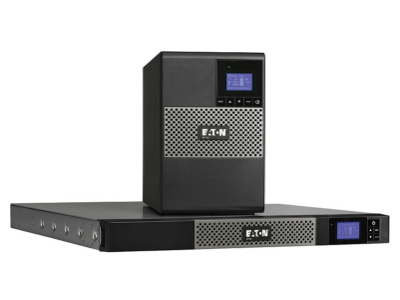

The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD and energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers and storage devices, in tower or rack format.
- Manageability: The new graphical LCD display provides clear information on the UPS’s status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys.
- Performance and efficiency: Energy efficient UPS: With an optimised electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.
- Availability and Flexibility: The 5P is available in tower or Rack 1U format, providing unmatched energy density with up to 1.1 kW in only 1U.
To open the datasheet, click here.
//www.eaton.com/gb/en-gb/catalog/backup-power-ups-surge-it-power-distribution/eaton-5p-ups-emea.html
Rating (VA/W)
650 VA/420 W or 850 VA/600 W or 1150 VA/770 W or 1550 VA/1100 W
Form Factor
Tower or Rack 1U
Topology
Line-Interactive High Frequency (Pure Sinewave, Booster + Fader
Input voltage and frequency ranges without using batteries
160 V-294 V (adjustable to 150 V-294 V) 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Output voltage and frequency
230 V Adjustable to 200V / 208V / 220V / 230V / 240V), 50/60 Hz +/- 0.1 % (autosensing)
Communication Ports
1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini terminal block for remote ON/OFF and Remote Power Off
Communication Slot
1 slot for Network-MS card , ModBus-MS or Relay-MS cards
