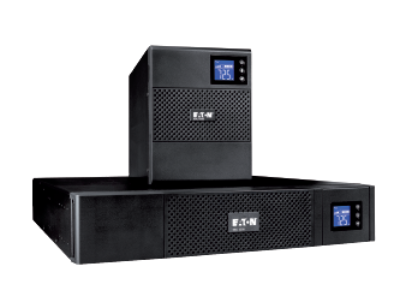

Eaton 5SC UPS - Network and server Single phase UPS

Get affordable protection for servers and networking systems  with Eaton 5SC UPS (500/750/1000/1500/2200/3000VA)

  • Manageability:  The LCD interface provides clear status of the UPS key parameters such as input and output voltage, load and battery level, and estimated runtime.
  • Reliability:  Pure sinewave output: When operating in battery mode the 5SC provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
  • Flexibility:  Rack models are designed to fit into short depth wall enclosures down to 500mm, 2 post racks or to be wall mounted.

Ideal for protecting:

  • Rack or Tower servers
  • NAS, Network equipment
  • ATMs, Ticket machines, Kiosks

To open the data sheet, click here.

Contact us

Rating (VA/W)

Up to 3000VA/2700W

Form Factor

Up to R/T 2U


Line interactive High Frequency (Sinewave, Booster, Fader)

nput voltage range without using batteries

184 to 276 V

Output voltage and frequency 2

230V (-10/+6 %) (Adjustable to 220/230/240 V), 50/60 Hz ± 1Hz (Autosensing)

Communication ports

1 USB port + RS232 serial port (USB and RS232 cannot be used simultaneously)
ROO/RPO + card slot (Rack and R/T models) for Network-MS card or Relay-MS card
