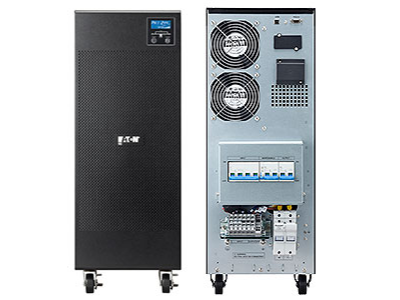

EATON 9E20Ki UPS

Eaton 9E 20kVA 1:1 and 3:1

The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.

  • Online double conversion topology
  • Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status
  • Reliable UPS at an attractive price
  • Provides more real power (watts) to protect more equipment with a 0.8 power factor
  • Internal bypass and maintenance bypass are available as standards for service continuity
  • Combo input (3:1 and 1:1) on the 10kVA, 15kVA, 20 kVA
  • Long runtime with up to 4 optional EBM cabinets
  • Extra-long runtime available with 3kVA, 10kVA and 20kVA XL models
  • XL models with internal supercharger for extra-long runtime
  • Communication through USB, RS232 serial or over the network with an optional communication card(Network card, ModBus/Jbus or Contacts/Serial cards)
  • Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
  • CE compliance certified by external laboratory (CB report from the TUV)

To open the datasheet, click here.

To open the runtime graph, click here.

Contact us

Topology:

Online double conversion

Rating (VA/Watts):

20000/16000

Connection:

Hardwired

Input Voltage range:

176-276V without derating (up to 110-276V with derating)

Output Voltages:

220V/230V/240V ±2 %

Ports and Slots:

1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously) , 1 slot for Network-M2, ModBus-MS or Relay-MS cards

Warranty:

1 year

Configuration:

Tower
